Archery
Specification:
1. Case size: 110CM*70CM*13CM
2. Aluminium case
3. Digit height:40cm, 3 digits,
4. LED lamp indication: 8cm preparing(Red),start(Green, Yellow),time up(Red)
5. Power supply: AC 220V or DC 12V car battery(User Prepared)
6. Transmission: Wireless 150 meters
7. Tri-pod stand
8. Console: wireless console

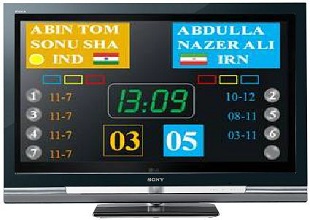

BADMINTON SCOREBoard
List of Equipments for Badminton Scoreboard Setup:
1. 50/42” LCD TV for Display : 2 Nos.
2. Thin Client for network : 2 Nos.
3. Server PC for Multi Court setup : 1 Set
4. Laptop for Operation : 1 No.
5. Net work Cable : 100 mtr.

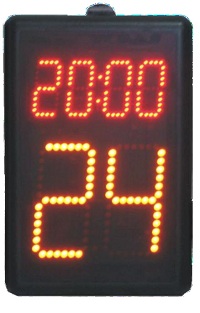

Basketball Scoreboard
Technical Specification:-
• Model : STM-24
• Size ：61cm (Height) x 39cm (Width) x 8cm (Deep)
• Weight：4.5Kg
• Transmission：Wired or wireless(Option)
• Mounting：Fixed on top of Goal Post
• Display ：7 segment，Shot clock digit size 24cm. Game time digit size 12cm
• Digit Color：Amber，Red or Green selectable
• Buzzer ：External equipped
• Controller ：RMT-02 or MTS288
• Function : Game time & Short Clock (24 Second/14Second)
• Item List : 2 display, One set of console, Power & Data cables
Cricket Scoreboard
Technical Specification:
• Size of the Board : 4200mm(W) x 3800mm (H) x 200mm (D)
• Digit Height : 10”, seven segment module
• Player Name: 10 Character x 2 player.
• Message display : 10” digit height, 5 x 7 dot matrix. 20 character.
• Player Name: 10” digit height, 5 x 7 dot matrix. 10 x 2 character
• Display Colour: Amber/Green
• Operation: Note book PC + Software for cricket Scoreboard. Wireless transmitter & receiver provided.
• Data transmission: Wireless / wired operation
• Transmission up to : 200m

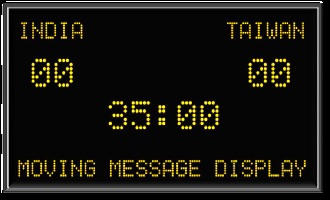

Hockey/Soccer ScoreBoard
Technical Specification:
• Width:14 ft
• Height:08 ft
• Clear Viewing Distance:150 M
• Construction :Pixels (4 dots in one pixel for Team name & Massage display and 30 dots in pixel Score & Game Clock display)
• Number ofCharacters:(Team Names : 6 + 6 = 12 ,Team Score : 2 + 2 = 4,Moving Message : 16,Game Time : 5)
• Display Matrix (Pixels): (Team Names : 30 x 7 = 210 Pixels each,Scrolling Message: 90 x 7 = 630 Pixels,Team Score: 10 x 7 = 70Pixels each,Game Time: 20 x 7 = 140 pixels + 2 Pixels for blinker)
• Character Height :(Team Name & message - 250 mm ,Team Score & Clock - 500 mm )
• Display Color : Amber
• Luminance :>3500 Nits
• Viewing Angle: 60 degree
• Power Consumption : 9600 Watts Peak
• Operating Voltage :220V/ 50 HZ
• Operating Temperature:0 – 50 Degree C
• Operation Control:Ethernet LAN Interface/ Wireless
• Software:Dedicated Software Supplied
• UTP Cable Length:200 M
Judo scoreboard
Specifications: (Electronic Score Board)
1. Show each team’s name abbreviations
2. Show game time
3. Show weight range for woman or man
4. Show Ippon, Waza-ari, Yuko
5. Show koka time, automatically scoring
6. Show hansoku-make, keikoku, shul, shido
7. Display color: Red
8. Operation : Through Console Controller
9. Data transmission: Wired/Wireless
10. Data transmission distance: 100 mtrs.
11. Viewing Distance: 75 mtrs.
12. Input voltage : 220V AC 60/50Hz, 3A

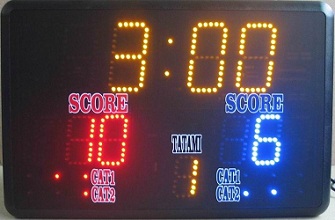

Karate Scoreboard
Specification:
1. Show game time
2. Show scores of each team
3. Show CAT1 & CAT2 of each team
4. Show Tatami number
5. Wired or wireless(option) transmission
6. Size : 140cm X 90 cm x 10cm, Timer & score
7. digit height 25cm, tatami digit height 15cm, CAT height 3.5cm
8. Input voltage : 220V AC 60/50Hz, 2A

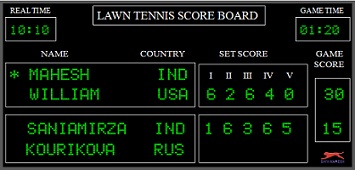

Lawn Tennis Scoreboard
Technical Specification:
1. Length : 3048 mm (10 Feet)
2. Height : 1219 mm (4 Feet)
3. Construction : Modular (1219mm x 610 mm Modules)
4. Number of Characters(Formed on Matrix Modules) :
70 consisting of:
1 x 4 –Service,
10 x 4 –Player Names,
3 x 4 –Country Names,
2 x 5 –Set Scores,
2 x 2 –Game Score.
5. Character Height: 120mm
6. Readable distance range : 15 - 70 Meters (50 - 235 Feet)
7. Character matrix : 5 x 7 LED Pixels.
8. Character Luminance : 3400 NITS with all Pixels ON
9. Pixel Diameter: 5 mm
10. Pixel Intensity: 1,000 mCd
11. Pixel Colour:Green
12. Viewing Angle :30 Degrees
13. Power Consumption: 500 Watts Peak.
14. Operating Voltage : 220V
15. Operating Temperature : 0-50 Degrees C
16. Operation control : Dedicated Keyboard with LCD display
Or PC interface. (Laptop)
17. Transmission mode : Wireless/wired
18. Length of data cable : 200 M.

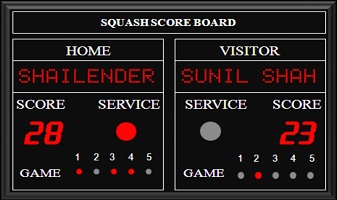

SQUASH Scoreboard
Technical Specification:
• Size of the board : 5ft x 3ft
• Viewing distance:3-30M
• Character Height for Names :2.6”
• Number of characters:10 x 2
• Digit height for Score:4”, Seven segment
• Service Clusters :35 LED dots –Red
• Game clusters:10 LED dots-Red at 5x2 places
• Operation:Through custom controller with 2 lines 16 Character LCD display and keyboard
• Acrylic front covered with vinyl printed legends.

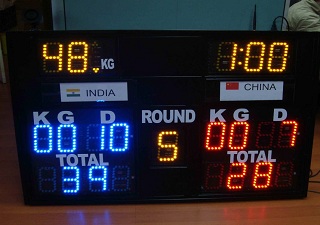

TaekWANDO scoreboard
Technical Specification:
1. Size of the Score board: 72cm (w) x 72cm (H) and 8cm width.
2. Additional 4 judge keypad connected
3. There is 1, 2 or 3 score button for red & blue side.
4. During game time, if more than 3 judgers have give the same scores for the same side
within 1 second, the score will valid and displayed.
5. The size for keypad: 16cm(W) x 7cm(H) x 5 cm(D).

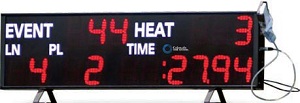

OTHER SCOREBOARDS(like:swimming,wrestling,multiscoreboards)
